Wordflow Temporal Course · Lessons

11 · Retries in depth

Goal: a real word that isn’t in the puzzle earns a bonus. Checking it means calling an unreliable dictionary service, and the game must handle every way it fails.

Concepts

Retry policy. Controls how an Activity is retried:

FieldMeaningDefault
Initial intervalWait before the first retry1 s
Backoff coefficientMultiplier for each later wait2
Maximum intervalCap on the wait100 × initial
Maximum attemptsTotal attempts; 0 means no limit0
Non-retryable error typesError types that are never retriednone

Timeouts.

TimeoutLimits
Start-To-CloseOne attempt.
Schedule-To-CloseThe whole Activity, including every retry and wait.
HeartbeatTime between heartbeats from a long-running Activity. Used in the Pick First exercise.

Not every response is an error. A 404 from the dictionary means “not a word”. That’s a valid answer, not a failure.

Fail gracefully. If the dictionary can’t answer in time, the guess still counts. It’s simply not a bonus. The Workflow catches the Activity’s final error and moves on.

Patterns

What you’ll build

  • A LookupWord Activity that calls GET /services/dictionary/words/{word}:
    • 200: true. 404: false.
    • 401: non-retryable error.
    • 429: retryable error with the next retry delay set from Retry-After.
    • Anything else: retryable error.
  • The Worker gets the services URL from SERVICES_URL, defaulting to http://localhost:8080/services.
  • An isRealWord helper: Start-To-Close 2 s, Schedule-To-Close 10 s, retries starting at 500 ms, doubling, at most 5 attempts. Any final error means false.
  • In the guess handler: if the outcome is “not in puzzle”, the word is real, and the game isn’t over, mark it as a bonus.

Build it

1. The Activity

Create app/activities/dictionary.go:

package activities

import (
	"context"
	"fmt"
	"net/http"
	"net/url"
	"strconv"
	"time"

	"go.temporal.io/sdk/temporal"
)

// DictionaryActivities call the dictionary service over HTTP.
type DictionaryActivities struct {
	BaseURL string
	HTTP    *http.Client
}

// LookupWord reports whether word is a real word.
func (a *DictionaryActivities) LookupWord(ctx context.Context, word string) (bool, error) {
	req, err := http.NewRequestWithContext(ctx, http.MethodGet, a.BaseURL+"/words/"+url.PathEscape(word), nil)
	if err != nil {
		return false, err
	}
	resp, err := a.HTTP.Do(req)
	if err != nil {
		return false, err
	}
	defer resp.Body.Close()

	switch resp.StatusCode {
	case http.StatusOK:
		return true, nil
	case http.StatusNotFound:
		return false, nil
	case http.StatusUnauthorized:
		// Retrying will not fix bad credentials.
		return false, temporal.NewNonRetryableApplicationError("dictionary rejected our credentials", "unauthorized", nil)
	case http.StatusTooManyRequests:
		// Wait as long as the service asks before the next attempt.
		seconds, _ := strconv.Atoi(resp.Header.Get("Retry-After"))
		return false, temporal.NewApplicationErrorWithOptions("dictionary rate limit", "rate_limited", temporal.ApplicationErrorOptions{
			NextRetryDelay: time.Duration(seconds) * time.Second,
		})
	default:
		return false, fmt.Errorf("dictionary returned %d", resp.StatusCode)
	}
}
  • Use the Activity’s ctx for the request. When the attempt times out, the request is cancelled.
  • NextRetryDelay replaces the retry policy’s wait for the next attempt only.
  • Instead of making the error non-retryable in the Activity, you could list "unauthorized" in the retry policy’s NonRetryableErrorTypes. Use the Activity when the error is always permanent, and the policy when it depends on the caller.

2. Register it

In app/cmd/worker/main.go, import "net/http" and "os", then:

	servicesURL := os.Getenv("SERVICES_URL")
	if servicesURL == "" {
		servicesURL = "http://localhost:8080/services"
	}
	w.RegisterActivity(&activities.DictionaryActivities{BaseURL: servicesURL + "/dictionary", HTTP: http.DefaultClient})

Configuration belongs in the Worker and Activities. Workflow code can’t read environment variables.

3. Call it

In app/workflows/game.go, import "go.temporal.io/sdk/temporal" and add:

// isRealWord asks the dictionary service. If it cannot answer in time, the
// guess simply does not earn a bonus.
func isRealWord(ctx workflow.Context, word string) bool {
	ctx = workflow.WithActivityOptions(ctx, workflow.ActivityOptions{
		StartToCloseTimeout:    2 * time.Second,  // one attempt
		ScheduleToCloseTimeout: 10 * time.Second, // every attempt: the player is waiting
		RetryPolicy: &temporal.RetryPolicy{
			InitialInterval:    500 * time.Millisecond,
			BackoffCoefficient: 2,
			MaximumAttempts:    5,
		},
	})
	var a *activities.DictionaryActivities
	var valid bool
	if err := workflow.ExecuteActivity(ctx, a.LookupWord, game.Normalize(word)).Get(ctx, &valid); err != nil {
		workflow.GetLogger(ctx).Warn("dictionary lookup failed", "word", word, "error", err)
		return false
	}
	return valid
}

In the guess handler, after state.Guess:

			outcome := state.Guess(guess.Word, workflow.Now(ctx))
			if outcome == game.OutcomeNotInPuzzle && isRealWord(ctx, guess.Word) && !state.Over() {
				state.MarkBonus(guess.Word)
				outcome = game.OutcomeBonus
			}

The handler holds the lock while the lookup runs, so other guesses wait their turn. The clock doesn’t wait, so check state.Over() after the lookup.

4. Run it

make clean-workflows

Restart the Worker. Compare with solutions/11.

Check it

Run make clean-workflows and restart the Worker. Pick a mode in the External services panel, then guess a real word that isn’t in the puzzle. Each puzzle file lists some under extras. Watch the server log, which prints every dictionary request, and the pending Activity in the Temporal UI.

ModeWhat the service doesWhat you should see
okAnswersBonus right away.
flaky2 of every 3 requests fail with 500Bonus within about 1.5 s. The log shows up to 3 requests: fail, fail, ok.
slowTakes 3 sEach attempt times out at 2 s. After 10 s the total limit is hit and it’s Not in puzzle.
rate_limitedEvery other request is 429 Retry-After: 3Bonus, either right away or after exactly 3 s. Guess a few words to see both.
down5035 attempts over about 7.5 s, then Not in puzzle.
unauthorized401Not in puzzle right away. One request, no retries.
  • Each row behaves as described.

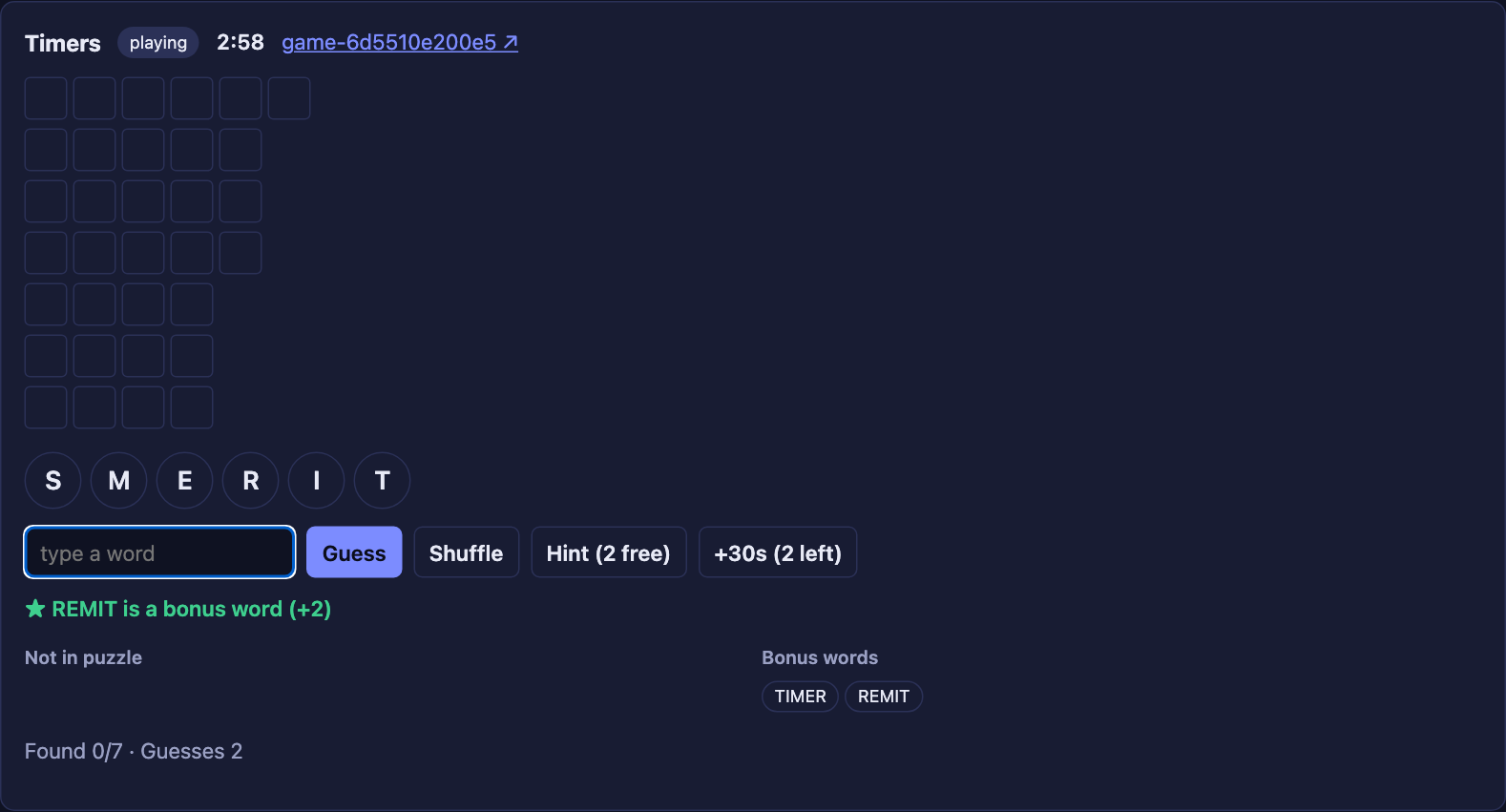

    A bonus word

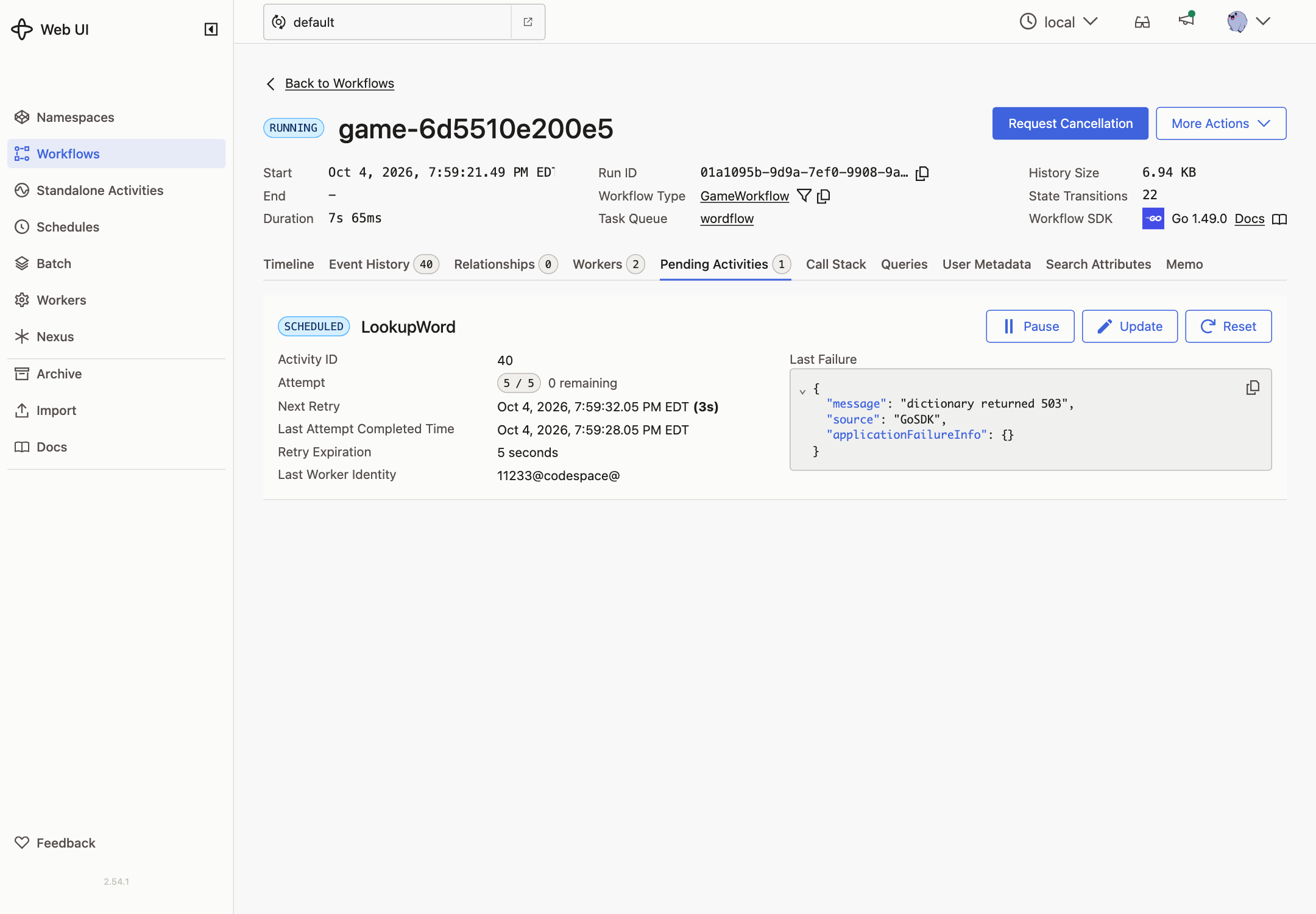

  • While a lookup is retrying, the Temporal UI shows the pending Activity’s attempt number and last failure.

    A pending Activity that's retrying

  • In every mode the game keeps working. The Worker logs a warning when a lookup gives up.

Set the mode back to ok when you’re done.
